If you're growing wine grapes in your backyard, there's a good chance your vines are planted near an existing lawn or landscape sprinkler system.
That creates an obvious question:
Why install a separate irrigation system when sprinklers already reach the vines?
For most backyard vineyards, the answer is: you can sometimes leverage your existing irrigation infrastructure—but you generally don't want lawn sprinklers routinely spraying your grapevine leaves and fruit.
The better approach is to use your home's irrigation system as the water source and controller, then create a dedicated drip line for the vines.
Why Regular Lawn Sprinklers Aren't Ideal
A lawn and a grapevine have very different watering requirements.
Grass is typically watered relatively frequently and across a shallow root zone. Established grapevines develop much deeper root systems and generally benefit from deeper, less frequent irrigation rather than constant shallow watering.
There's another problem.
Traditional spray sprinklers can wet:
Leaves → shoots → grape clusters → vineyard floor
That additional moisture can create conditions favorable to certain fungal diseases.
For a home winemaker trying to grow clean, healthy fruit, there's little benefit in repeatedly soaking the canopy when the water really needs to reach the roots.
The better rule:
Use your irrigation system. Don't necessarily use your sprinkler heads.
Convert a Sprinkler Zone to Drip Irrigation
You may already have much of the infrastructure you need.
Your home irrigation system probably includes:
Water supply → valves → timer/controller → underground irrigation lines → sprinkler heads
Instead of building an entirely separate system, you may be able to convert or adapt part of an existing zone to drip irrigation.

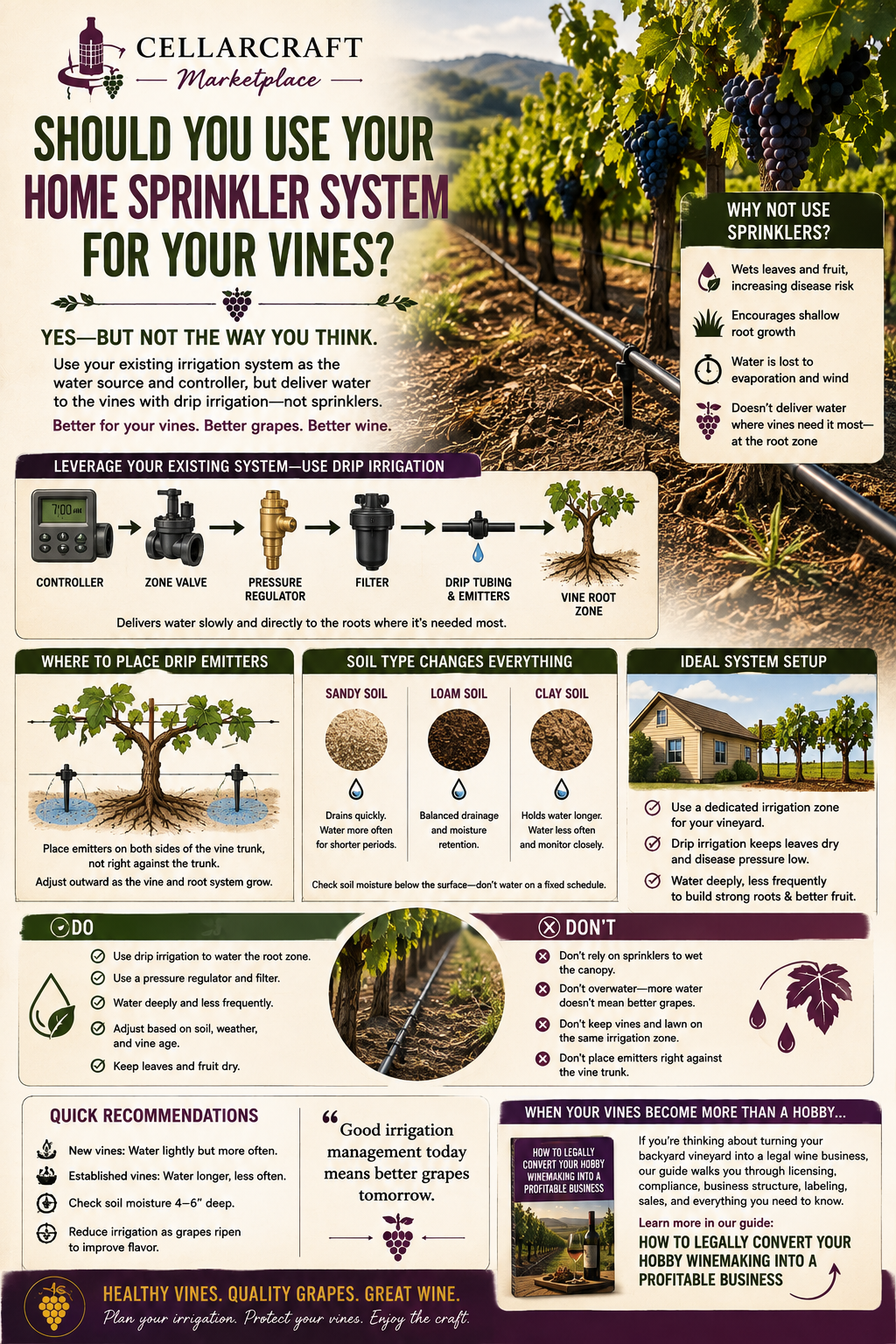

A simplified system could look like this:
HOME IRRIGATION SYSTEM
CONTROLLER
│
▼
ZONE VALVE
│
▼
PRESSURE REGULATOR
│
▼
FILTER
│
▼
1/2" DRIP TUBING
│
────────┼────────
│ │ │
▼ ▼ ▼
VINE VINE VINE
● ● ● ● ● ●
EMITTERS EMITTERS EMITTERS
Now the same irrigation controller operating your landscaping can also manage your vineyard.
The difference is that the water is delivered directly where the vines need it.
Don't Simply Attach Drip Tubing Without Checking Pressure
This is where a DIY conversion can go wrong.
A conventional sprinkler system may operate at substantially higher pressure than your drip components are designed to handle.
That's why drip conversions commonly incorporate:
A pressure regulator
and
A filter
The regulator reduces water pressure to the operating range required by your drip equipment.
The filter helps prevent the small emitter openings from becoming clogged.
Commercial drip-conversion kits are available specifically for converting certain sprinkler risers or irrigation zones to drip systems. Match all components to your existing irrigation setup and follow the manufacturer's specifications.
Where Should the Water Go?
Don't position a single emitter directly against the grapevine trunk.
Your objective is to encourage a healthy root zone around the vine.
A simple backyard setup might use emitters positioned on either side:
TRELLIS
──────────┼──────────
│
GRAPEVINE
│
● │ ●
↑ ↑
EMITTER EMITTER
As the vine matures and its root system expands, emitter placement can be adjusted outward or additional emitters can be added.
The exact number and flow rate depend on your soil, climate, vine age and irrigation schedule.
Soil Type Changes Everything
Before deciding how long to run your irrigation system, understand your soil.
Sandy soil
Water drains quickly.
You may need shorter or somewhat more frequent irrigation cycles.
Loam soil
Usually provides a useful balance between drainage and water retention.
Clay soil
Water moves slowly and can remain in the root zone much longer.
Running your irrigation system for the same amount of time in sandy and heavy clay soils can produce completely different results.
This is why copying someone else's watering schedule isn't always useful.
Water according to your soil and your vines—not someone else's timer setting.
How Much Water Does a Grapevine Need?
There isn't one universal number.
A newly planted grapevine has a small root system and requires different irrigation management from a mature five- or ten-year-old vine.
Water requirements also change with:
Temperature • rainfall • soil • vine size • wind • grape variety • growth stage
Rather than assuming your vines need water every time your lawn does, check the soil.
A simple soil-moisture probe—or even carefully checking soil several inches below the surface—can tell you far more than looking at dry surface soil.
The surface may look completely dry while moisture remains available deeper in the root zone.
Should Grapevines Be on the Same Zone as Your Lawn?
Ideally:
No.
This is probably the most important takeaway for a homeowner.
If grapevines and lawn sprinklers operate from the same valve, you're forced to give both plants essentially the same irrigation schedule.
That's rarely ideal.
Consider this:
LAWN GRAPEVINES
Frequent watering Deeper watering
Shallow roots Deeper roots
Spray coverage Root-zone irrigation
Same schedule? ← NOT IDEAL →
A dedicated irrigation zone gives you independent control.
If adding a new valve isn't practical, talk with an irrigation professional about whether your existing system can be modified or whether another drip solution makes sense.
What If You Can't Modify Your Sprinkler System?
You still have options.
For a small backyard vineyard, you can run a separate drip line from an outdoor faucet.
A simple setup might include:
Hose bib → timer → backflow protection as required → filter → pressure regulator → drip tubing → emitters
This can be an inexpensive way to irrigate a row of backyard vines without modifying your underground sprinkler system.
Just make sure the components are compatible and follow local plumbing/backflow requirements.
Avoid Constantly Wet Soil
More water doesn't automatically produce better grapes.
Overwatering can encourage excessive vegetative growth, contribute to poor root-zone conditions and make vineyard management more difficult.
If your vines produce enormous amounts of foliage but fruit struggles to ripen, irrigation is one of several factors worth evaluating.
For the home winemaker, your goal isn't necessarily to grow the biggest vine possible.
It's to grow a balanced vine capable of ripening quality fruit.
A Practical Backyard Vineyard Setup
For many homeowners, an efficient setup looks like this:
HOUSE WATER
│
▼
IRRIGATION CONTROLLER
│
├──── ZONE 1 → FRONT LAWN
│
├──── ZONE 2 → BACK LAWN
│
├──── ZONE 3 → LANDSCAPING
│
└──── ZONE 4 → BACKYARD VINEYARD
│
▼
DRIP SYSTEM
│
──────────┼──────────
🍇 🍇 🍇
VINE VINE VINE
You're leveraging the infrastructure you already paid for while giving the vineyard its own watering strategy.
For a backyard grower, that's often the best of both worlds.
The Bottom Line
Should you leverage your home's sprinkler system for your grapevines?
Yes—as infrastructure.
Use the existing water supply, valves and irrigation controller when practical.
But rather than allowing conventional lawn sprinklers to repeatedly spray your vines, consider converting or extending the system to provide dedicated drip irrigation directly to the root zone.
The basic concept is simple:
Existing irrigation system + dedicated vineyard zone + drip emitters = better control.
You'll use water more precisely, keep unnecessary moisture off the grape clusters and gain much greater control over how your backyard vineyard is irrigated.
And for a home winemaker, healthier vines and better-managed fruit ultimately mean one thing:
better grapes entering your fermenter.
